Hybrid Equipment Series
Home / Products / Hybrid Equipment Series / LTD series plough mixer

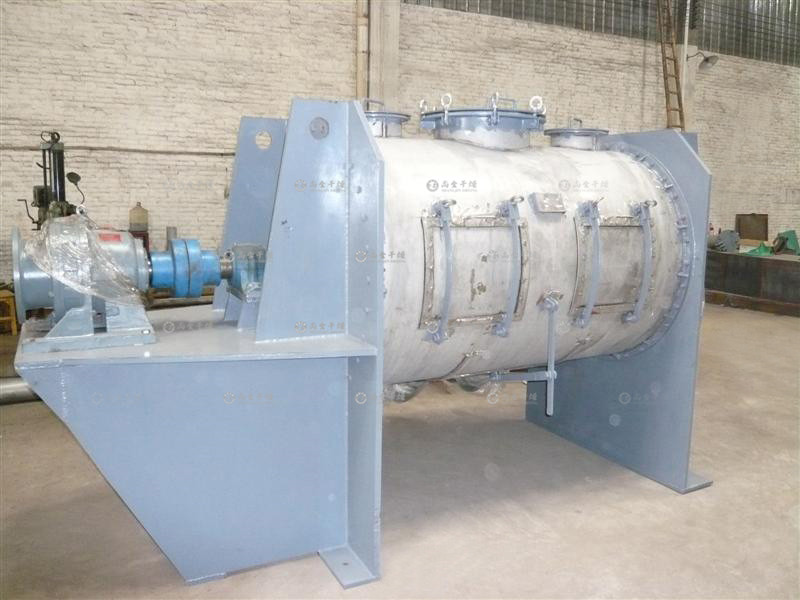

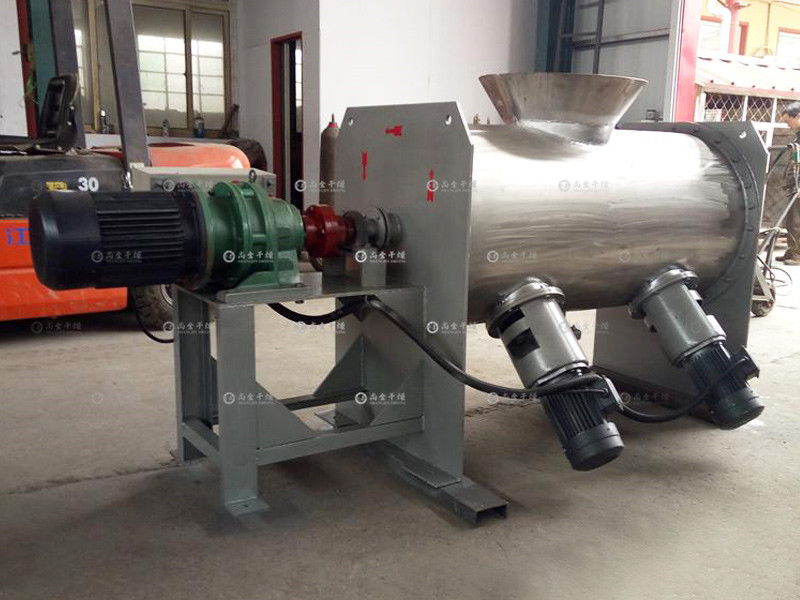

LTD series plough mixer
This model is composed of four parts: transmission mechanism, horizontal cylinder, plough and flying knife. The material is axially supported along the cylinder wall under the action of the plough. When the material flows through the flying knife, it is thrown by the flying knife with high speed, so as to achieve uniform mixing in a short time.
Hotline:
+86151-6111-8388
Details




Summary

  This model is composed of four parts: transmission mechanism, horizontal cylinder, plough and flying knife. The material is axially supported along the cylinder wall under the action of the plough. When the material flows through the flying knife, it is thrown by the flying knife with high speed, so as to achieve uniform mixing in a short time.

Scope of application

  It is applied to the mixing of solid-solid (powder and powder), solid-liquid (a small amount of liquid is added to the powder), as well as wet granulation, drying and other composite processes in chemical, pharmaceutical, veterinary medicine, food, feed, feed additives, plastics and other industries; Especially suitable for mixing viscous or colloidal additives.


Parameters



Model/parameter
LDH-0.1
LDH-0.3
LDH-0.5
LDH-1
LDH-2
LDH-4
LDH-6
LDH-8
LDH-10
LDH-12
LDH-15
Primary mixing(kg)
40-60
120-180
200-300
400-600
800-1200
1600-2400
2400-3600
3200-4800
4000-6000
4800-7200
6000-9000
Installed power(kw)
3.7
7.7
8.5
15.5
23
28
33
37
41
48
56
Equipment weight(kg)
430
950
1100
1800
2520
3220
6750
7200
7500
8500
9200
VR



Photo Gallery



Link to this article : Detail-pro-37.html
Previous:WZ series weightless mixer Next:None!
